Laser-Cut vs Standard Car Keys Arlington TX (2026)
Laser-cut sidewinder keys vs standard edge-cut car keys explained: how each is made, why cutting method changes the price, and 2026 Arlington TX costs.
As of August 2026, cutting a standard edge-cut car key in the Arlington area runs roughly $25–$70, while a laser-cut sidewinder key runs roughly $60–$150 — before any programming. Arlington Auto Locksmith is a mobile, automotive-only shop carrying code-capable cutting equipment for both types, so the work happens wherever your vehicle is parked. Call or text (682) 413-8193 and we will identify your key type from the VIN in about a minute.
Why two keys that both open a car door cost so differently
Customers ask this constantly, and it is a fair question. You have a piece of metal. Someone puts it in a machine. Why does one cost $30 and one cost $120?
The answer is that they are not the same manufacturing operation. A standard edge-cut key is shaped by grinding notches into the edge of a flat blade. A laser-cut key is milled — a rotating cutter carves a precisely-depthed channel into the flat faces of a thicker blank, on both sides, to tolerances an edge-cut key never approaches.
Different machine, different blank, different skill, different price. And that is before we get to the transponder chip, which is a separate cost on top of both.
| Key cutting service | Arlington locksmith | Dealer / big-box |
|---|---|---|
| Standard edge-cut duplicate from a working key | $25–$70 | $40–$120 |
| Standard edge-cut cut to VIN code | $50–$110 | $80–$180 |
| Laser-cut sidewinder duplicate from a working key | $60–$150 | $110–$250 |
| Laser-cut sidewinder cut to VIN code | $90–$180 | $150–$320 |
| Emergency blade inside a smart key fob | $55–$120 | $90–$190 |
| Cutting plus transponder programming, typical | $130–$340 | $220–$550 |
These are 2026 DFW ranges for a mobile visit inside our service radius. Vehicle, blank type, and whether the key also needs programming all move the figure.
How do I tell which key I have?

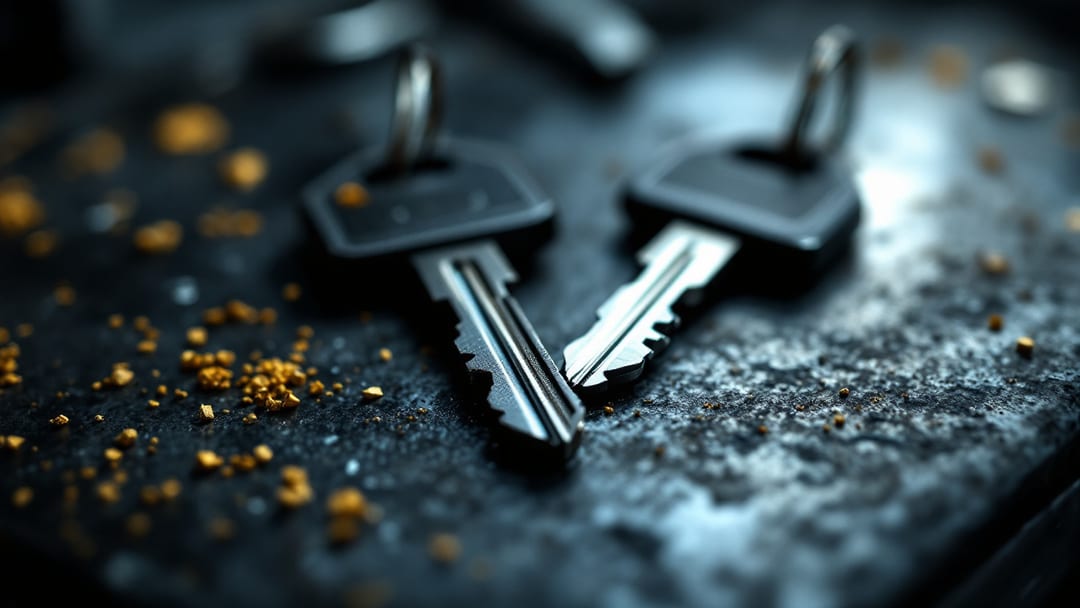

Hold the blade flat and look at it.
Standard edge-cut. Jagged teeth along one or both edges of a thin, flat blade. The profile is visible from the side. This is the key style most people picture, and it dominated cars through roughly the mid-2000s.
Laser-cut sidewinder. The edges are smooth and the blade is noticeably thicker. Instead of teeth, there is a wavy groove milled down the center of each flat face. It usually looks and feels more substantial. Sometimes called a high-security key, an internal-cut key, or a sidewinder.
Emergency blade inside a smart key. If you drive a push-button-start vehicle, pull the hidden blade out of the fob. It will be one of the two styles above, usually laser-cut on newer vehicles.
If you are still unsure, photograph the blade against a plain background and send it. It takes us seconds.
Why did the industry move to laser-cut keys?
Three reasons, and they are worth understanding because they explain the price.
Pick resistance. A sidewinder lock cylinder uses wafers that read the milled track on both faces of the blade, often in more positions than an edge-cut cylinder. That is materially harder to manipulate than a conventional wafer lock.
More combinations. More cut positions and more depth values mean vastly more possible key codes, which reduces the odds of one vehicle's key operating another.
Durability. A thicker blade with no thin exposed teeth resists bending and snapping. Anyone who has broken an old edge-cut key off in a door lock understands the appeal.
Vehicle theft patterns drove much of this. The Insurance Institute for Highway Safety has tracked how theft methods shift as manufacturers close off older attack paths, and mechanical key security was one of the earliest fronts. Federal vehicle-theft prevention standards administered through the National Highway Traffic Safety Administration also shaped how manufacturers approached the problem.
"Customers hear 'high security key' and assume it is marketing. It is not. A sidewinder blank costs more, the machine that cuts it costs more, and the cut has to be right to a tolerance an edge-cut key would forgive." — Arlington Auto Locksmith lead automotive technician
Cutting by duplication versus cutting to code
This distinction matters as much as the key type, and most people have never heard it explained.
Duplication copies an existing working key. A machine traces the original and reproduces it on a blank. Fast and cheap — but it copies the original's wear too. Duplicate a duplicate of a duplicate and you eventually get a key that will not turn anything.
Cutting to code works from the vehicle's factory key code, decoded from the VIN through authorized channels. The result is a key cut to original factory specification, not to a worn copy. It costs more and it is strictly better, especially on an older vehicle whose only key has been in a pocket for a decade.
For an all-keys-lost job, code cutting is the only option — there is no original to trace. Our guide to VIN-cut car keys covers that process in depth.
The practical recommendation: if your current key is old and feels sloppy in the ignition, do not duplicate it. Cut a fresh key to code and both of you will be better off.
A typical cutting call in Arlington
Someone calls after a hardware store or big-box counter told them "we can't do that one." That is almost always a laser-cut key. Consumer-grade duplicators handle edge-cut blanks; they do not handle sidewinder milling.
We ask for the vehicle year, make, and model, and whether the key has a chip and buttons. That determines the blank, the machine setup, and whether programming is also needed.
On site, ownership verification comes first — photo ID plus a document tying the person to the VIN. Texas locksmith companies operate under the Texas Department of Public Safety Private Security Program, and this is not optional for anyone working legitimately.
Then the key is cut in the van, tested in the door cylinder and the ignition before any programming happens, and programmed if it carries a chip. Testing the mechanical cut first is deliberate: a key that will not turn a lock is a cutting problem, and finding that out before programming saves everyone time.
Does the cutting method change the programming?
No, and this trips people up. Cutting and programming are entirely independent.
A laser-cut key can be a plain mechanical key with no chip at all. An edge-cut key can carry a modern transponder. The blade shape tells you how the mechanical lock works; it tells you nothing about the immobilizer.
That is why a full key job has two separate line items. You are paying for a machined piece of metal and, separately, for an electronic credential written into the vehicle. Our post on transponder vs smart key covers the electronic half, and car key programming explained goes deeper on what happens inside the module.
Common cutting problems we see
A duplicate that works in the door but not the ignition. Classic worn-original problem. The ignition cylinder has tighter tolerances than the door. Cut to code instead.
A key that turns stiffly from day one. Either the cut was off or the blank was wrong. A correct cut in a healthy cylinder should turn smoothly with light pressure.
An online blank that will not accept a cut cleanly. Blank quality varies enormously. Soft metal mills badly and wears fast.
A snapped blade. Edge-cut keys on older vehicles are the usual victims, especially in a dry, dusty door cylinder that has not been used in years. Our broken car key extraction guide covers recovery.
"The dealer says they have to order the blank." Often true for unusual vehicles, and one of the reasons an independent that stocks common blanks can finish same day. Our car key duplication service carries both styles on the truck.
Where we cover
Arlington Auto Locksmith is mobile-only and automotive-only, working roughly a 20-mile radius around Arlington. That includes the I-20 and I-30 corridors, the Highway 360 stretch, the neighborhoods around The Parks Mall and Six Flags, the UTA area, and the event lots at AT&T Stadium and Globe Life Field.
We also serve Grand Prairie, Mansfield, Fort Worth, Kennedale, and the wider Mid-Cities. Coverage details are on the Arlington service page.
Frequently Asked Questions
How much does it cost to cut a laser-cut car key in Arlington?
In 2026, duplicating a laser-cut sidewinder key from a working original runs about $60–$150 in the Arlington area, and cutting one to the factory code from the VIN runs about $90–$180. Those figures cover the mechanical cut only. If the key also carries a transponder chip, programming is a separate cost on top, typically bringing the total to roughly $130–$340.
Why can't a hardware store cut my car key?
Consumer-grade duplicators are built for edge-cut blanks with teeth along the edge. A laser-cut sidewinder key requires a milling machine that carves a depth-controlled channel into both flat faces of a thicker blank, which is a different machine entirely. Most retail counters do not have one, which is why they turn these jobs away rather than attempting them.
Is a laser-cut key actually more secure?
Meaningfully, yes. Sidewinder cylinders use wafers reading the milled track on both faces of the blade, often in more positions than a conventional cylinder, which makes mechanical manipulation considerably harder. The design also allows far more possible combinations, reducing the chance that one vehicle's key operates another. It is a genuine security improvement rather than a marketing term.
Should I duplicate my old key or cut a new one to code?
If your current key is old, worn, or feels sloppy in the ignition, cut to code. Duplication copies the original including its wear, and a copy of a worn key is worse than the worn key. Cutting to the factory code from the VIN produces a key at original specification, which usually turns better than the one you have been using for years.
Does the type of blade change how programming works?
No. The blade shape governs the mechanical locks and the transponder governs the immobilizer, and they are entirely independent systems. A laser-cut key can have no chip at all, and an edge-cut key can carry a modern transponder. That is why a complete key job is quoted as two separate things: the machined metal and the electronic credential written into the vehicle.
Can you cut keys at my house or workplace?
Yes. We are mobile-only, and the code-capable cutting equipment for both edge-cut and laser-cut blanks rides in the service vehicle. That matters most when the vehicle cannot be driven, and it matters practically the rest of the time, because it means nobody has to arrange a ride to a shop and back for a job that takes under an hour.
Get the right key cut the right way
The cutting method is half of what you are paying for on any automotive key, and getting it wrong produces a key that binds, wears fast, or never turns at all. Arlington Auto Locksmith carries code-capable equipment for both key types and comes to wherever the vehicle is parked, any hour, anywhere in our radius.
